2. The BlueiceExtendedModel: Fitting and Confidence Intervals
In the previous tutorial we learned about the BlueiceExtendedModel and its rate and shape parameters. Now, we’ll make use of this knowledge to fit the model to data and compute a confidence interval for the WIMP rate parameter.
[1]:
import numpy as np
import matplotlib.pyplot as plt
import scipy.stats as stats
from copy import deepcopy
from alea import BlueiceExtendedModel
[2]:
# Just some plotting settings
import matplotlib as mpl
mpl.rcParams["figure.dpi"] = 200
mpl.rcParams["figure.figsize"] = [4, 3]
mpl.rcParams["font.family"] = "serif"
mpl.rcParams["font.size"] = 9
2.1 Initializing the model & generating data
This is the same as in the previous notebook.
[3]:
# initialize
config_path = "unbinned_wimp_statistical_model_simple.yaml"
model = BlueiceExtendedModel.from_config(config_path)
# generate and assign data
data = model.generate_data()
model.data = data
Computing/loading models on one core: 100%|██████████| 5/5 [00:00<00:00, 661.79it/s]
2.2 Fitting the data
Now that the data is set, we can perform the unconditional fit as in the first example notebook:
[4]:
best_fit, max_ll = model.fit()
best_fit
[4]:
{'wimp_mass': 50.0,
'livetime': 2.0,
'wimp_rate_multiplier': 0.8886252867209539,
'er_rate_multiplier': 0.9659986044551202,
'er_band_shift': -0.09736695259158042}
Let’s check the expectation values under the best-fit parameters:
[5]:
model.get_expectation_values(**best_fit)
[5]:
{'er': 386.3994446524198, 'wimp': 17.772505734419077}
Since we use iminuit as a backend for minimizing the likelihood, we can have a look at the very detailed iminuit output, which provides much more information about the fit:
[6]:
model.minuit_object
[6]:
| Migrad | |
|---|---|
| FCN = 3040 | Nfcn = 62 |
| EDM = 1.7e-07 (Goal: 0.0001) | |
| Valid Minimum | Below EDM threshold (goal x 10) |
| No parameters at limit | Below call limit |
| Hesse ok | Covariance accurate |
| Name | Value | Hesse Error | Minos Error- | Minos Error+ | Limit- | Limit+ | Fixed | |
|---|---|---|---|---|---|---|---|---|
| 0 | wimp_mass | 50.0 | 0.5 | yes | ||||
| 1 | livetime | 2.00 | 0.02 | yes | ||||
| 2 | wimp_rate_multiplier | 0.89 | 0.27 | 0 | ||||
| 3 | er_rate_multiplier | 0.97 | 0.05 | 0 | ||||
| 4 | er_band_shift | -0.10 | 0.07 | -2 | 2 |
| wimp_mass | livetime | wimp_rate_multiplier | er_rate_multiplier | er_band_shift | |
|---|---|---|---|---|---|
| wimp_mass | 0 | 0 | 0.00 | 0.0000 | 0.000 |
| livetime | 0 | 0 | 0.00 | 0.0000 | 0.000 |
| wimp_rate_multiplier | 0.00 | 0.00 | 0.0705 | -0.0012 (-0.096) | 0.002 (0.111) |
| er_rate_multiplier | 0.0000 | 0.0000 | -0.0012 (-0.096) | 0.00234 | -0.0001 (-0.029) |
| er_band_shift | 0.000 | 0.000 | 0.002 (0.111) | -0.0001 (-0.029) | 0.00557 |
You can see that the parameters, which are not fittable are fixed in the fit to their nominal values. For comparison let’s have a look at our parameter definition again:
[7]:
print(model.parameters)
nominal_value fittable ptype relative_uncertainty uncertainty blueice_anchors fit_limits parameter_interval_bounds fit_guess description
wimp_mass 50.0 False None None NaN None None None NaN WIMP mass in GeV/c^2
livetime 2.0 False livetime None NaN None None None NaN Livetime in years
wimp_rate_multiplier 1.0 True rate None NaN None [0, None] [0, 50] NaN None
er_rate_multiplier 1.0 True rate True 0.2 None [0, None] None 1.0 None
er_band_shift 0.0 True shape None NaN [-2, -1, 0, 1, 2] [-2, 2] None NaN ER band shape parameter (shifts the ER band up and down)
To perform a conditional fit, i.e. fix a parameter to a certain value, we can simply parse this value to the fit method with the value of the parameter we want to fix. For example we could perform the background-only fit by fixing the wimp_rate_multiplier to 0.
[8]:
best_fit_c, max_ll_c = model.fit(wimp_rate_multiplier=0.0)
best_fit_c
[8]:
{'wimp_mass': 50.0,
'livetime': 2.0,
'wimp_rate_multiplier': 0.0,
'er_rate_multiplier': 1.007873534571834,
'er_band_shift': -0.2540693824232261}
[9]:
model.minuit_object
[9]:
| Migrad | |
|---|---|
| FCN = 3085 | Nfcn = 67 |
| EDM = 1.6e-06 (Goal: 0.0001) | |
| Valid Minimum | Below EDM threshold (goal x 10) |
| No parameters at limit | Below call limit |
| Hesse ok | Covariance accurate |
| Name | Value | Hesse Error | Minos Error- | Minos Error+ | Limit- | Limit+ | Fixed | |
|---|---|---|---|---|---|---|---|---|
| 0 | wimp_mass | 50.0 | 0.5 | yes | ||||
| 1 | livetime | 2.00 | 0.02 | yes | ||||
| 2 | wimp_rate_multiplier | 0.0 | 0.1 | 0 | yes | |||
| 3 | er_rate_multiplier | 1.01 | 0.05 | 0 | ||||
| 4 | er_band_shift | -0.25 | 0.07 | -2 | 2 |
| wimp_mass | livetime | wimp_rate_multiplier | er_rate_multiplier | er_band_shift | |
|---|---|---|---|---|---|
| wimp_mass | 0 | 0 | 0 | 0.0000 | 0.000 |
| livetime | 0 | 0 | 0 | 0.0000 | 0.000 |
| wimp_rate_multiplier | 0 | 0 | 0 | 0.0000 | 0.000 |
| er_rate_multiplier | 0.0000 | 0.0000 | 0.0000 | 0.00237 | 0.0000 |
| er_band_shift | 0.000 | 0.000 | 0.000 | 0.0000 | 0.00449 |
[10]:
model.get_expectation_values(**best_fit_c)
[10]:
{'er': 403.1494216433639, 'wimp': 0.0}
You can nicely see that in the constrained fit, the missing WIMP signal component is absorbed by a higher ER rate and a lower ER shift parameter (shifting the ER band down in cs2 towards the WIMP signals in our toy data).
2.3 The ancillary likelihood term
The likelihood used in this model is the sum of a science run term and an ancillary likelihood term:
[11]:
model.likelihood_names
[11]:
['science_run', 'ancillary']
The science run term was discussed in some detail in the previous tutorial. Now we’ll look at the ancillary likelihood term. You can find in the documentation that this term contains all constraints that you might have on some of the nuisance parameters from ancillary measurements.
In our case we have an uncertainty on the ER rate of 20% on the nominal value. We take this into account by adding a normal distribution centered at 1 (nominal er_rate_multiplier) and with a standard deviation of 0.2 (20% uncertainty) to the ancillary likelihood term. Let’s have a look:
[12]:
copied_data = {}
copied_data["science_run"] = deepcopy(model.data["science_run"])
copied_data["ancillary"] = deepcopy(model.data["ancillary"])
# Set ancillary measurement of er_rate_multiplier to nominal value
nominal_er = model.parameters.er_rate_multiplier.nominal_value
copied_data["ancillary"]["er_rate_multiplier"][0] = nominal_er
# Assign data with nominal ancillary measurement
model.data = copied_data
[13]:

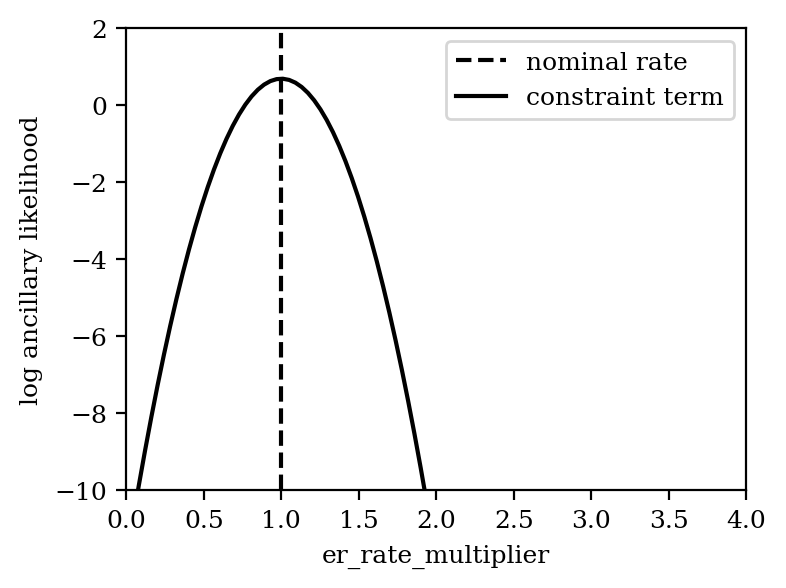

x = np.linspace(0, 4, 100)
# y = model.likelihood_list[1].constraint_terms["er_rate_multiplier"](x)
y = model.likelihood_list[1].constraint_functions["er_rate_multiplier"].logpdf(x)
plt.axvline(nominal_er, c="k", ls="--", label="nominal rate")
plt.plot(x, y, c="k", label="constraint term")
# Cosmetics
plt.xlabel("er_rate_multiplier")
plt.ylabel("log ancillary likelihood")
plt.xlim(0, 4)
plt.ylim(-10, 2)
plt.legend()
[13]:
<matplotlib.legend.Legend at 0x127fe1050>
In each generated toy, the ancillary measurement is varied according to the uncertainty (i.e. in this case measurements are drawn from the normal distribution with mean 1 and standard deviation 0.2). This then shifts the constraint term to the “measured” value. We can illustrate this by artificially assuming a measurement of 3.0 for the ancillary measurement:
[14]:
# Set ancillary measurement of er_rate_multiplier to 3
copied_data["ancillary"]["er_rate_multiplier"][0] = 3.0
# Assign data with nominal ancillary measurement
model.data = copied_data
[15]:

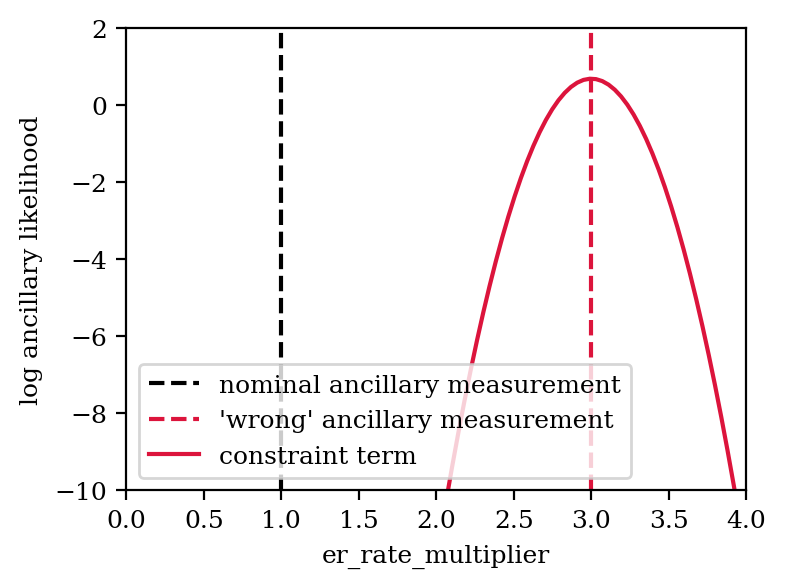

x = np.linspace(0, 4, 100)
y = model.likelihood_list[1].constraint_terms["er_rate_multiplier"](x)
plt.axvline(nominal_er, c="k", ls="--", label="nominal ancillary measurement")
plt.axvline(3.0, c="crimson", ls="--", label="'wrong' ancillary measurement")
plt.plot(x, y, c="crimson", label="constraint term")
# Cosmetics
plt.legend()
plt.xlabel("er_rate_multiplier")
plt.ylabel("log ancillary likelihood")
plt.xlim(0, 4)
plt.ylim(-10, 2)
[15]:
(-10.0, 2.0)
Now let’s try fitting this:
[16]:
best_fit_anc, max_ll_ancc = model.fit()
best_fit_anc
[16]:
{'wimp_mass': 50.0,
'livetime': 2.0,
'wimp_rate_multiplier': 0.8276914651286785,
'er_rate_multiplier': 1.0992224805878552,
'er_band_shift': -0.10269293086202387}
[17]:
model.minuit_object
[17]:
| Migrad | |
|---|---|
| FCN = 3089 | Nfcn = 69 |
| EDM = 2.27e-07 (Goal: 0.0001) | |
| Valid Minimum | Below EDM threshold (goal x 10) |
| No parameters at limit | Below call limit |
| Hesse ok | Covariance accurate |
| Name | Value | Hesse Error | Minos Error- | Minos Error+ | Limit- | Limit+ | Fixed | |
|---|---|---|---|---|---|---|---|---|
| 0 | wimp_mass | 50.0 | 0.5 | yes | ||||
| 1 | livetime | 2.00 | 0.02 | yes | ||||
| 2 | wimp_rate_multiplier | 0.83 | 0.25 | 0 | ||||
| 3 | er_rate_multiplier | 1.10 | 0.05 | 0 | ||||
| 4 | er_band_shift | -0.10 | 0.07 | -2 | 2 |
| wimp_mass | livetime | wimp_rate_multiplier | er_rate_multiplier | er_band_shift | |
|---|---|---|---|---|---|
| wimp_mass | 0 | 0 | 0.00 | 0.000 | 0.000 |
| livetime | 0 | 0 | 0.00 | 0.000 | 0.000 |
| wimp_rate_multiplier | 0.00 | 0.00 | 0.0636 | -0.0012 (-0.085) | 0.002 (0.106) |
| er_rate_multiplier | 0.000 | 0.000 | -0.0012 (-0.085) | 0.00295 | -0.0001 (-0.026) |
| er_band_shift | 0.000 | 0.000 | 0.002 (0.106) | -0.0001 (-0.026) | 0.00555 |
The statistics of ER events in the science data set is sufficiently large to pull the ER rate parameter to a value that describes the science data well. Though we can see that due to the constraint term the parameter is pulled towards a larger value compared to the initial fit.
Before we continue, let’s revert to our originally generated data set:
[18]:
model.data = data
2.4 Constructing confidence intervals
Now that we have our data and know how to fit the model to it (with and without constraint), we can construct a confidence interval on our parameter of interest (POI), which is the wimp_rate_multiplier in this case.
If we assume that a WIMP rate multiplier of 1 corresponds to a WIMP-nucleon cross-section of \(10^{-45}\;\mathrm{cm^2}\), we can directly convert this into a confidence interval on the cross-section.
Let’s first see how we can compute the confidence interval with the confidence_interval method and then replicate the construction of the confidence interval by hand.
[19]:
ref_xsec = 1e-45 # cm^2
confidence_level = 0.9
[20]:
lower_limit, upper_limit = model.confidence_interval(
poi_name="wimp_rate_multiplier", confidence_level=confidence_level
)
lower_limit *= ref_xsec
upper_limit *= ref_xsec
print(
f"90% CL confidence interval for WIMP-nucleon cross-section: [{lower_limit:.2e}, {upper_limit:.2e}] cm2"
)
90% CL confidence interval for WIMP-nucleon cross-section: [5.15e-46, 1.39e-45] cm2
We use a profile likelihood ratio test statistic to construct our confidence interval. This is defined as:
\(q(s)\equiv -2 \cdot \ln\frac{\mathcal{L}(s, \hat{\hat{\boldsymbol{\theta}}})}{\mathcal{L}(\hat{s}, \hat{{\boldsymbol{\theta}}})}\),
where the likelihood \(\mathcal{L}\) is a function of the WIMP rate multiplier \(s\geq 0\) and a set of nuisance parameters \(\boldsymbol{\theta}\), which in our case are the ER rate and ER band shift parameters. The single hat denotes the global maximum likelihood estimator of a parameter, while the double hat corresponds to the nuisance parameters that maximize the likelihood under the constraint that \(s\) is fixed to a certain value.
Let’s start by computing the test statistic for a few values of \(s\):
[21]:
# unconstrained fit
best_fit, ll_val = model.fit()
# constrained fits
s_vals = np.linspace(0, 2, 200)
ll_vals_c = []
for s in s_vals:
_, ll_val_c = model.fit(wimp_rate_multiplier=s)
ll_vals_c.append(ll_val_c)
ll_vals_c = np.array(ll_vals_c)
[22]:

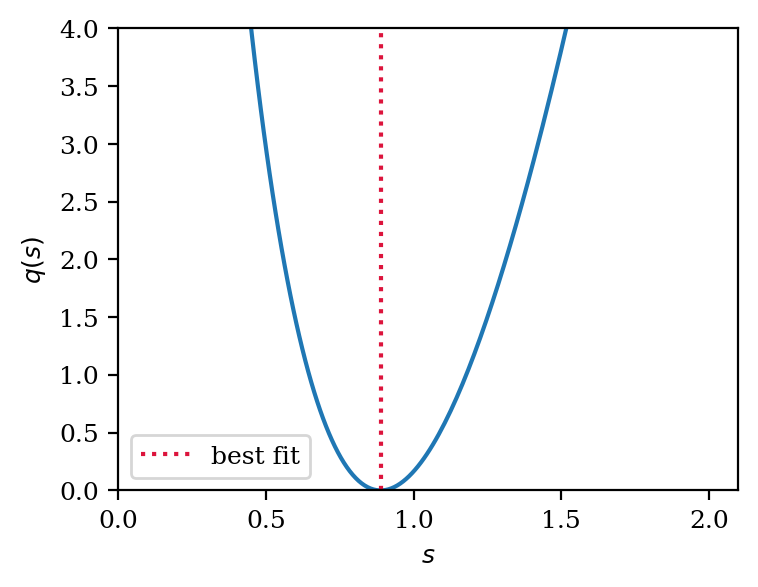

# plot the profile-likelihood scan
plt.plot(s_vals, 2 * (ll_val - ll_vals_c))
plt.axvline(best_fit["wimp_rate_multiplier"], label="best fit", ls=":", color="crimson")
plt.legend()
plt.xlim(0)
plt.ylim(0, 4)
plt.xlabel("$s$")
plt.ylabel("$q(s)$")
[22]:
Text(0, 0.5, '$q(s)$')
To obtain the 90% CL confidence interval we use the fact that in the asymptotic limit, the distribution of \(q(s)\) will follow a chi-square distribution with one degree of freedom (for more details refer to this paper from Cowan et al.). Thus, the critical region for the 90% CL interval is given by the value at which the cumulative distribution function of the chi-square distribution is equal to 0.9. This value is given by the chi2.ppf function
in scipy.stats.
We also apply the linear conversion from the signal rate multiplier \(s\) to cross-section \(\sigma\) here.
[23]:

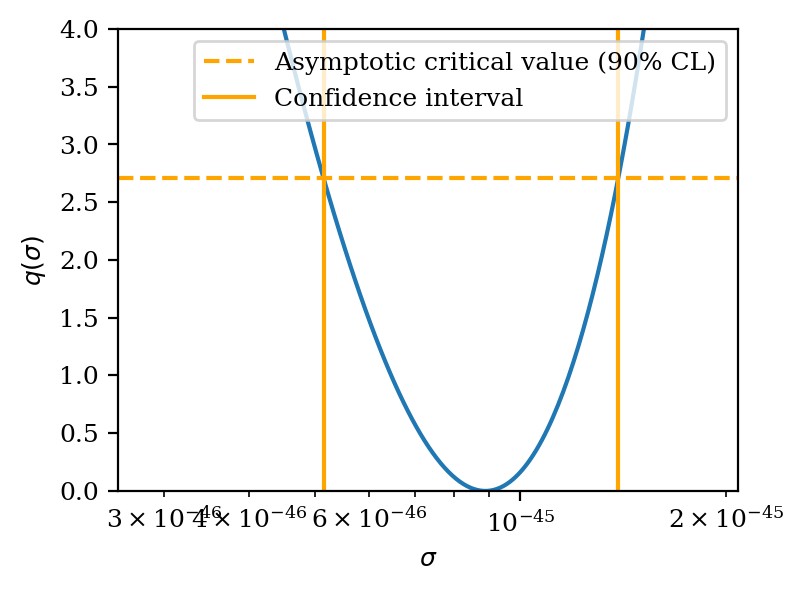

# plot the profile-likelihood scan
plt.plot(s_vals * ref_xsec, 2 * (ll_val - ll_vals_c))
plt.axhline(
stats.chi2(1).ppf(confidence_level),
label="Asymptotic critical value (90% CL)",
c="orange",
ls="--",
)
plt.axvline(lower_limit, c="orange", label="Confidence interval")
plt.axvline(upper_limit, c="orange")
# Cosmetics
plt.legend()
plt.xlim(lower_limit * 0.5, upper_limit * 1.5)
plt.semilogx()
plt.ylim(0, 4)
plt.xlabel("$\sigma$")
plt.ylabel("$q(\sigma)$")
[23]:
Text(0, 0.5, '$q(\\sigma)$')
